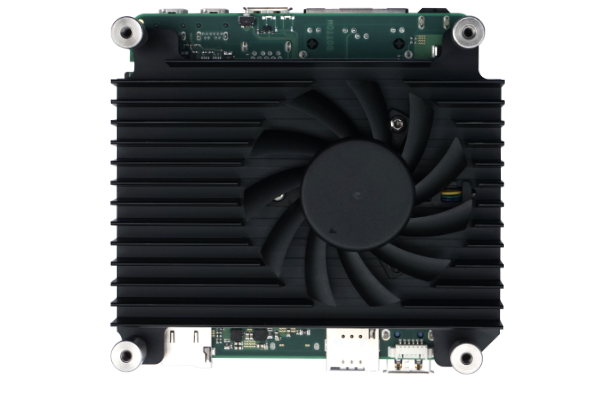

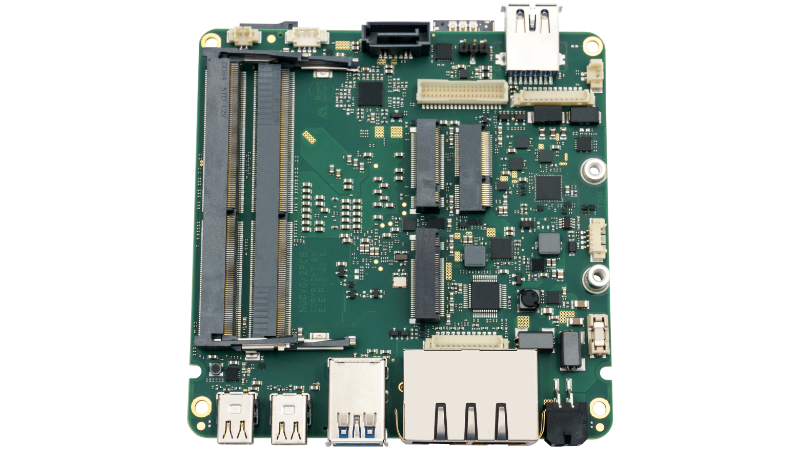

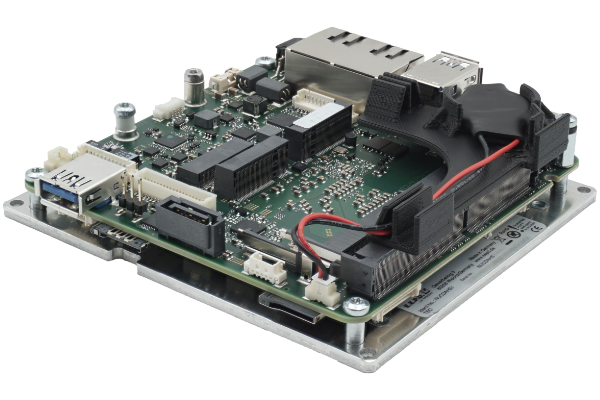

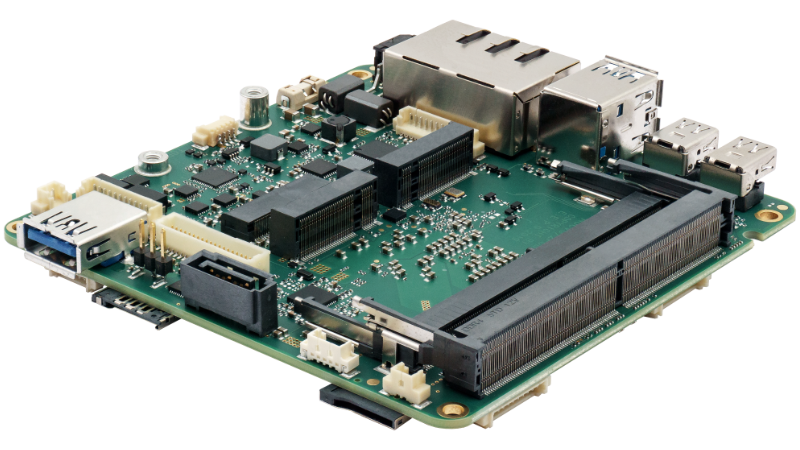

SBC PROFIVE® NUCV
x86 Single-Board-Computer in embedded NUC™ standard
The industrial PROFIVE® Single Board Computer (SBC) NUCV was designed in the embedded NUC™ standard and is based on the latest AMD Ryzen™ Embedded V1000 platform which features excellent performance per watt as well as a superior integrated graphics unit.
Thus the NUCV SBC is a small (about 10 x 10 cm) and very powerful industrial embedded board, which is perfectly equipped for various applications like
- AI (artificial intelligence)
- ML (machine learning)
- CV (computer vision)
- Robotics
- Mobile systems
- Automation
- Metrology
- IoT
- Ggraphics-intensive applications
- Image processing
- Video surveillance
- 3D simulators
- Optical quality control (vision computing)
- Digital signage
- Kiosks
The NUCV SBC features a wide input voltage range from 8 VDC to 32 VDC as well as a special pre-fitting for vehicle use, including an input for continuous plus (terminal 30) and ignition plus (terminal 15). In addition, a special overvoltage protection circuit is implemented, which takes load-dump scenarios into account in particular.
Different CPUs with a TDP of 12W - 54W1 are used:
AMD Ryzen™ Embedded V1202B
2 cores / 4 threads | 2.3 GHz to 3.2 GHz | TDP: 12W to 25W
AMD Radeon™ Vega 3 Graphics
AMD Ryzen™ Embedded V1605B
4 cores / 8 threads | 2.0 GHz to 3.6 GHz | TDP: 12W to 25W
AMD Radeon™ Vega 8 Graphics
AMD Ryzen™ Embedded V1756B
4 cores / 8 threads | 3.25 GHz to 3.6 GHz | TDP: 35W to 54W1
AMD Radeon™ Vega 8 Graphics
AMD Ryzen™ Embedded V1807B
4 cores / 8 threads | 3.35 GHz to 3.8 GHz | TDP: 35W to 54W1
AMD Radeon™ Vega 11 Graphics
A variant (AMD Ryzen™ Embedded V1404I) with an extended temperature range is also available - please contact us if you are interested.
Design, production and support “Made in Germany"
1The NUCV supports only up to 35W TDP settings
- AMD processors of the V1000 series - V1202B / V1605B / V1756B / V1807B
- Powerful integrated GPU - AMD Radeon™ Vega 3 / 8 / 11 Graphics
- Up to 32 GB dual channel DDR4 memory
- 2 Gigabit Ethernet Ports Intel® I210 with IEEE1588
- 1 MicroSD card slot
- 3 M.2 - Type B, Type E, Type M
- 1 SATA (6G) with separate power connector
- 1 Dual USB 3.1 Gen2 (10Gb/s, limited by fuse to: 900mA each)
- 1 Rear USB 3.1 Gen2 (10Gb/s, limited by fuse protection to: 900mA)
- 1 internal USB 3.1 Gen2 (10Gb/s, limited by fuse protection to: 900mA)
- 1 RS-232 Port + 1 RS-232/485 Port
- 1 24-bit dual channel LVDS-Connector (OEM/ODM option)
- 2 Mini-DP++ connector up to 4096x2160 @ 60Hz
- fTPM - AMD firmware Trusted Platform Module
- Min. 8V up to max. 32V power supply range / automotive grade
- Max. Operating temperature range: commercial at 0°C to + 60°C; others on request
- Max. Storage temperature range: from -40°C to +85°C
- Max. relative humidity: 95% @ 40°C, non-condensing
- Dimensions: approx. 102 mm x 102 mm
- Supported operating Systems: Microsoft® Windows® 10 / 10 IoT Enterprise, Linux Ubuntu 20.04 LTS
- Design, Production and Support “Made in Germany"
AMD Ryzen™ Embedded V1000 series, TDP 12-35W
size approx.: 113mm x 46mm x 109mm
weight approx.: 330g + options

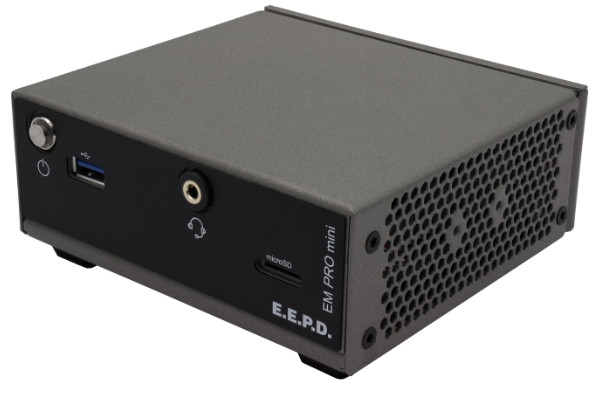

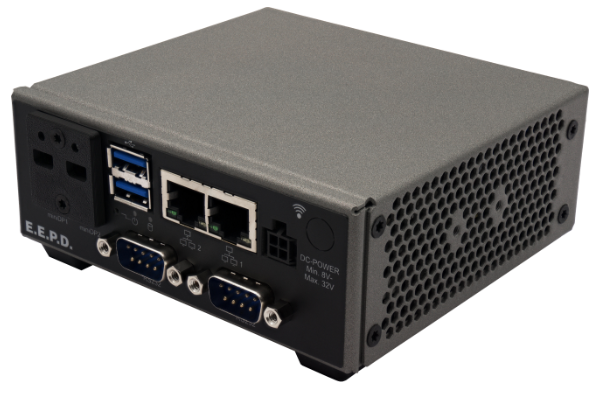

EM PRO mini - the professional IT-solution - Made in Germany
Modern, efficient and performant with AMD Ryzen™ V1000 and R1000 embedded CPUs as well as Vega iGPU
housing dimensions only approx. 117 x 51 x 115 mm
EM PRO midi - the professional IT-solution - Made in Germany
Modern, efficient and performant with AMD Ryzen™ V1000 embedded CPU as well as Vega iGPU
housing dimensions only approx. 111 x 117 x 201 mm

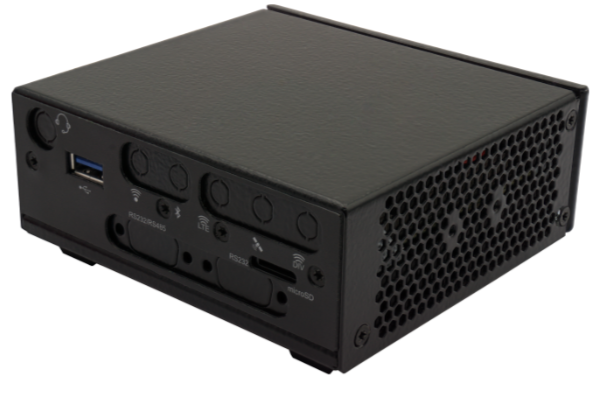

Ultra-compact industrial BoxPC based on AMD Ryzen™ Embedded V1000 processors
