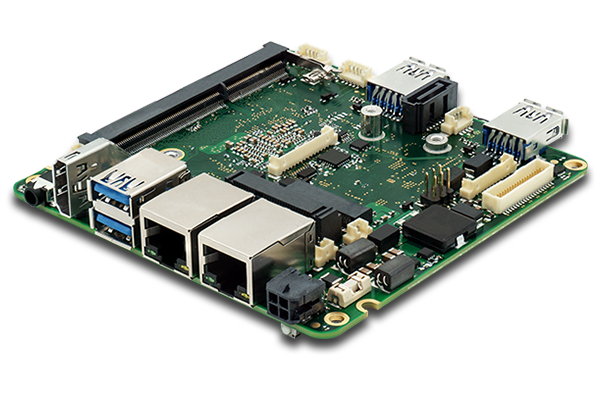

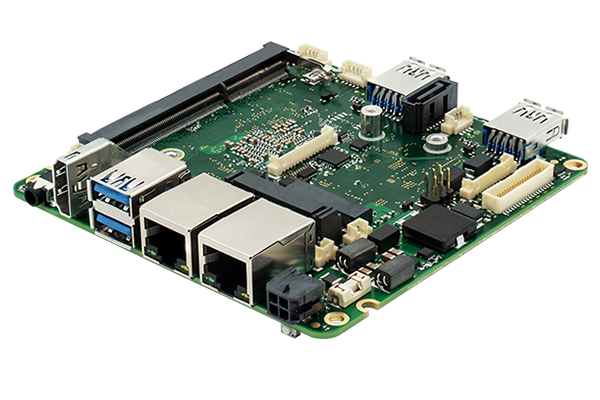

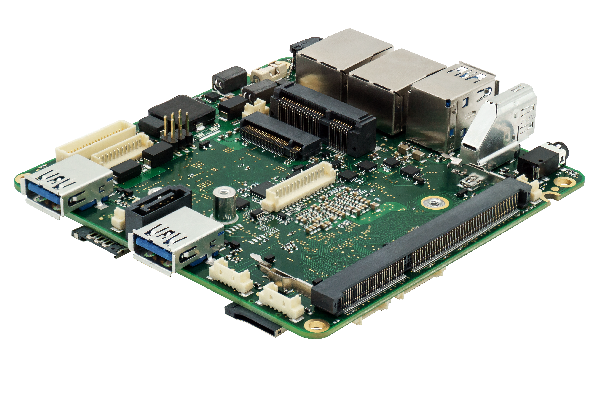

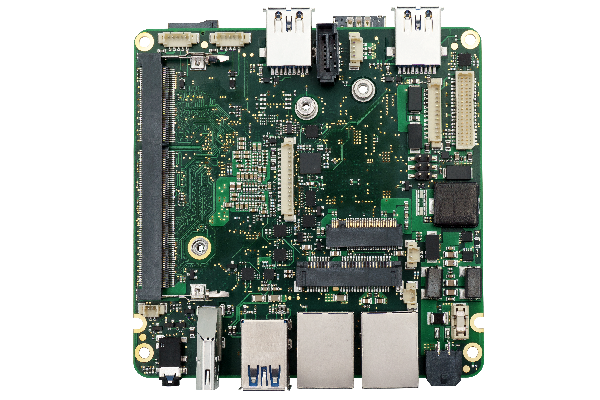

This board is a small 10 x 10 cm, very powerful low-power board that is suitable for a wide range of applications, such as: Mobile systems, automation, measurement technology, IoT or many other sectors and industries.

It is characterized by a wide input voltage range of 8 VDC to 32 VDC as well as a special pre-installation for the vehicle use, including an input for continous plus (Clip 30) and ignition plus (Clip 15).

In addition, a special overvoltage protection circuit for vehicle use is implemented, which in particular takes into account load dump scenarios.


Keyfeatures

  • up to 8GB DDR3L memory
  • 1x Dual-USB 3.0, up to 7 USB 2.0
  • 2x 1 Gigabit Ethernet ports Intel® I210 with IEEE1588
  • 1x PCI Express® Mini Card interface with SIM card socket
  • 1x MicroSD card slot
  • 1x M.2 2242 Type M for SSD
  • 1x RS-232 port
  • 1x RS-232/485 port
  • 1x HDMI connector
  • 1x 24-bit dual channel LVDS connector
  • 1x feature connector: SPI, PWM, I2C
  • MIC in, headphone out
  • min. 8 V to max. 32 V supply voltage range
  • operating temperature: from –40 °C to +85 °C ambient temperature
  • storage temperature: from –40 °C to +105 °C
  • max. rel. humidity: 95% @ 40 °C, non-condesing while stored | 89% while working
  • size: approx. 102 mm x 102 mm
  • supported operating systems: Microsoft® Windows® 10; Microsoft® Windows® 10 IoT Enterprise; Linux (Yocto Project 2.5.1, Ubuntu 18.04 LTS); Android 6.0

CPU types available

Intel® Atom™ processors
X7-E3950
X5-E3940
X5-E3930

Downloads


PRODUCT SERIES

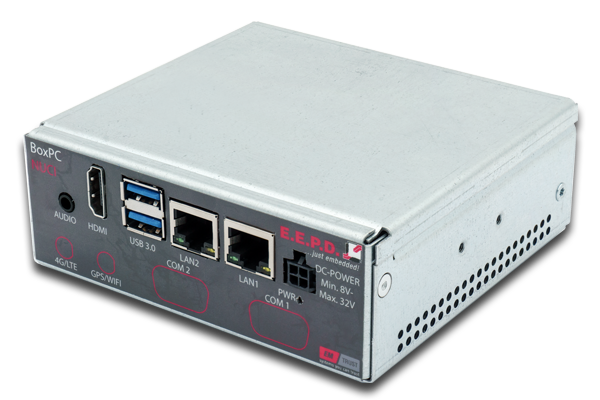

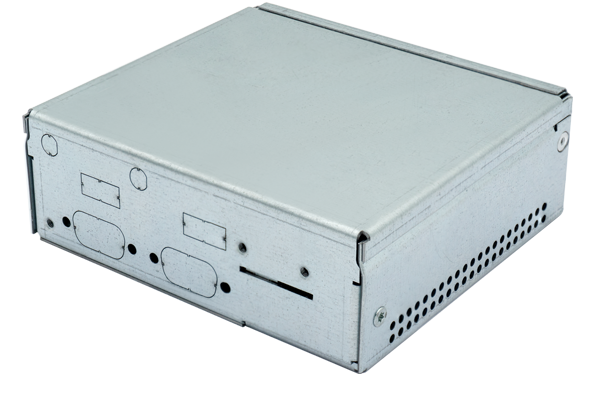

industrial BoxPC

The advantage: robust and reliable Box PCs in a compact design for universal installation in machines, control enclosures and control cabinets

Differences to the basic board

  size: approx. 117 mm x 120 mm x 45 mm
  weight: approx. 550 g + options

  size: approx. 102 mm x 102 mm
