SBC PROFIVE® NUCN

EMBEDDED ROBUSTNESS

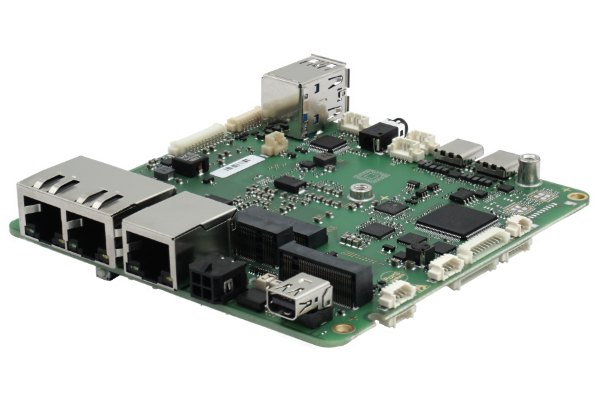

The NUCN board, a very robust industrial embedded board, corresponds to the embedded NUC standard with a size of around 10 x 10 cm (4 x 4"). All important components including memory and SSD are soldered to the board. It is ideal for applications that require high CPU performance combined with passive cooling, an extended temperature range and high mechanical resistance in conjunction with security features such as hardware TPM.

These are for example

  • Control systems in harsh environments
  • Mobile applications in vehicles and drones (integrated automotive grade power supply / KL15 support)
  • Robust industrial systems, e.g. with extended temperature range
  • Automation, vending machines, kiosk systems, POS
  • Micro servers, edge servers, IoT applications, gateways, communication applications, especially in outdoor areas
  • Robotics in extreme environments such as underground mining
  • PanelPC applications on ships and near the sea
  • and many more…

The key features of the NUCN include a memory of up to 16 GB soldered DDR5 RAM with in-band ECC (Error Correction Code) (depending on the variant), a soldered eMMC SSD, up to 3x 2.5 Gbit/s Ethernet, 2280 NVMe, as well as numerous security features. In addition to a TPM 2.0 chip, this also includes health monitoring and management with adjustable fan control, hardware monitoring and watchdog.

Special strengths of NUCN:

  • Extended operating temperature range from -40°C to +85 °C (depending on variant, see CPU list)
  • Long-term availability: Up to 15 years according to the CPU manufacturer
  • Robust thanks to soldered memory and SSD
  • 3 Intel® I226 2.5 Gbit/s ports with IEEE1588, TSN support and Wake-On-Lan (on one port)
  • Gateway support for 4G / LTE / 5G / WIFI 6

Keyfeatures

  • Latest Intel® efficiency core CPUs
  • Up to 16 GB LPDDR5-4800 memory down; embedded CPUs support In-Band ECC
  • Up to 3x Intel® I226-XX with 2,5 Gbit/s and IEEE1588;
    I226-V: Board variants with 0 °C bis +60 °C commercial ambient temperature
    I226-LM: Board variants with 0 °C bis +60 °C commercial ambient temperature
    I226-IT: Board variants with -40 °C bis +85 °C commercial ambient temperature
  • TSN-Support / Wake-on-LAN supported by one port
  • eMMC: up to 128 GB on board, JEDEC / MMCA Version 5.1 interface with 1-I/O, 4-I/O and 8-I/O mode
  • 3x M.2 - Type B, Type E, Type M
  • Up to 4x GPIO (3.3 V) and up to 3x GPIO with PWM (3.3 V / 50 kHz)
  • 1x Mini Display Port, up to 4096 x 2160 @ 60 Hz* resolution
  • 1x eDP, up to 4096 x 2160 @ 60 Hz (OEM only)* resolution
  • USB-A: 2x rear USB 3.2 Gen1 or Gen2 (depending on CPU), (up to 10 GB/s, OCP = 1500 mA each port)
  • USB-C: 2x front USB-C 3.2 Gen1 or Gen2 (up to 10 GB/s, OCP = 3000 mA each port) or 2x USB-C Alt Mode (up to 4096 x 2160 @ 60 Hz* resolution)
  • Serial Port: 2x RS-232 (HDX/FDX) and 2x RS-232/485 (HDX/FDX) (OEM only)
  • Intel® PTT (Firmware TPM)
  • TPM 2.0 support (Infineon SLB 9670) (depending on board variant)
  • Min. 8 VDC to max. 32 VDC power input, (eDP variants min. 14 VDC)
  • Max. commercial operating temperature from 0°C to + 60°C;
    Max. industrial operating temperature from -40 °C to +85 °C
  • Max. storage temperature from -40°C to +85°C, non condensing
  • Max. rel. humidity for storage: 95% @ 40°C, non condensing
  • Max. rel. humidity for operation: 89% @ 40°C, non condensing

  • Size approx.: 102 mm x 102 mm



  • * Max. 3 display outputs useable at the same time

CPU types available

Intel® Processor N50
2 Kerne / 2 Threads | 1.0 GHz - 3.4 GHz | TDP: 6W
Intel® UHD Graphics 12th Gen
Operating temperature: 0 °C to +60 °C

Intel® Processor N97
4 Kerne / 4 Threads | 2.0 GHz - 3.6 GHz | TDP: 12W
Intel® UHD Graphics 12th Gen
Operating temperature: 0 °C to +60 °C

Intel® Processor N100
4 Kerne / 4 Threads | 1.0 GHz - 3.4 GHz | TDP: 6W
Intel® UHD Graphics 12th Gen
Operating temperature: 0 °C to +60 °C

Intel® Processor N200
4 Kerne / 4 Threads | 1.0 GHz - 3.7 GHz | TDP: 6W
Intel® UHD Graphics 12th Gen
Operating temperature: 0 °C to +60 °C

Intel® Core™ i3-N305
8 Kerne / 8 Threads | 1.0 GHz - 3.4 GHz | TDP: 9W - 15W
Intel® UHD Graphics 12th Gen
Operating temperature: 0 °C to +60 °C

Intel Atom® x7211E
2 Kerne / 2 Threads | 1.0 GHz - 3.2 GHz | TDP: 6W
Intel® UHD Graphics 12th Gen
Operating temperature: 0 °C to +60 °C

Intel Atom® x7213E
2 Kerne / 2 Threads | 1.7 GHz - 3.2 GHz | TDP: 10W
Intel® UHD Graphics 12th Gen
Operating temperature: 0 °C to +60 °C

Intel Atom® x7425E
4 Kerne / 4 Threads | 1.5 GHz - 3.4 GHz | TDP: 12W
Intel® UHD Graphics 12th Gen
Operating temperature: 0 °C to +60 °C

Intel Atom® x7211RE
2 Kerne / 2 Threads | 1.0 GHz - 3.2 GHz | TDP: 6W
Intel® UHD Graphics 12th Gen
Operating temperature: –40 °C to +85 °C

Intel Atom® x7213RE
2 Kerne / 2 Threads | 2.0 GHz - 3.4 GHz | TDP: 9W
Intel® UHD Graphics 12th Gen
Operating temperature: –40 °C to +85 °C

Intel Atom® x7433RE
4 Kerne / 4 Threads | 1.5 GHz - 3.4 GHz | TDP: 9W
Intel® UHD Graphics 12th Gen
Operating temperature: –40 °C to +85 °C

Intel Atom® x7835RE
8 Kerne / 8 Threads | 1.3 GHz - 3.6 GHz | TDP: 12W
Intel® UHD Graphics 12th Gen
Operating temperature: –40 °C to +85 °C
