With the “Zen 2” x86 core architecture and innovative 7nm process technology, it is characterized by excellent energy efficiency and a strong and optimized integrated graphics unit (Radeon ™).

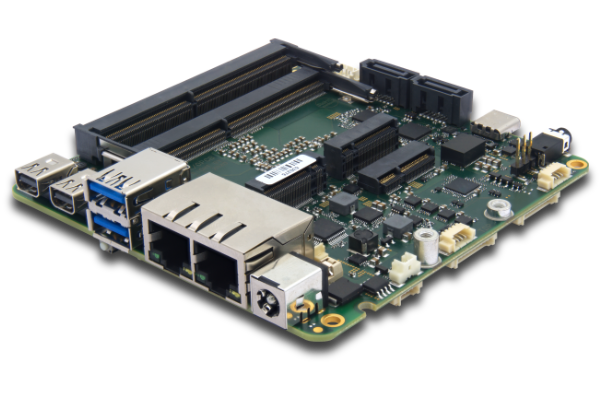

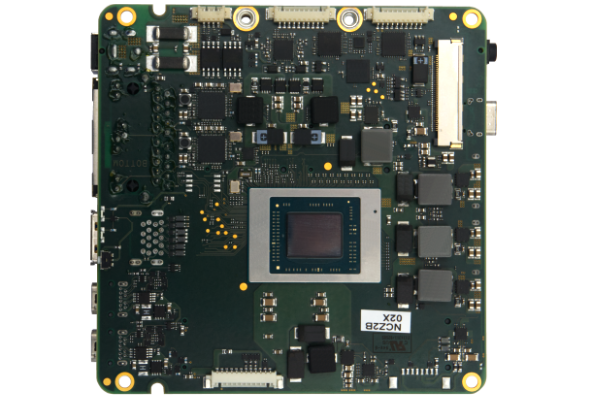

The ultra-compact board - only about 10 x 10 cm in size - is an extremely powerful industrial embedded board with up to 8 cores and 16 threads, depending on the CPU variant.

The main features of the PROFIVE® NUCE include a working memory of up to 32 GByte DualChannel DDR4 RAM, a wide range input from 10.8 VDC to 26.4 VDC and numerous other security features. In addition to the “AMD Firmware Trusted Platform Module” and a TPM 2.0 chip (Infineon), it also includes health monitoring and management with adjustable fan control, hardware monitoring and watchdog.

The high number of CPU cores and threads is particularly advantageous for parallel applications. The SBC is ideal for applications that require high CPU and / or GPU performance as well as security features such as ECC & hardware TPM, for example AI systems, medical applications, machine learning, computer vision, robotics, micro-servers, powerful workstations, robust industrial automation systems, IoT EDGE applications and much more.


Keyfeatures

  • powerful integrated GPU - AMD Radeon™ Graphics
  • up to 2x 32 GB DualChannel DDR4 memory with ECC support
  • 2x Intel® I225/I226 / 2.5 Gigabit Ethernet ports
  • TSN support / Wake-on-LAN supported by one port
  • 3x M.2 - Type B, Type E, Type M
  • 2x SATA (6G) with separate power connector
  • 2x USB-A 3.2 Gen2 (10 Gb/s, OCP = 1500 mA each)
  • 1x USB-C 3.2 Gen2 (10 Gb/s, OCP = 3000 mA) or USB-C Alt Mode
  • 2x internal USB 2.0 (OCP = 900 mA each)
  • 1x eDP connector with max. 3840x2160 incl. backlight control (OEM/ODM option)
  • 2x RS-232/485 ports (HDX/FDX)
  • 2x Mini-DP++ connectors, resolution up to 4096 x 2160 @ 60 Hz
  • fTPM - AMD firmware Trusted Platform Module | TPM 2.0 support (Infineon SLB 9670)
  • min. 10,8 VDC to 26,4 VDC power supply range
  • max. operating temperature range: commercial at 0 °C to +60 °C; other on request
  • max. storage temperature range from 40 °C to +85 °C
  • max. rel. humidity: 95% @ 40 °C, non-condesing while stored | 89% while working
  • size: approx. 102 mm x 102 mm

CPU types available

Various CPUs with a TDP of 10W - 54W are used:

AMD Ryzen™ Embedded V2516
6 cores / 12 threads | 2.1 GHz - 3.95 GHz | TDP: 10W - 25W
AMD Radeon™ Graphics - 6 CU / 1500 MHz

AMD Ryzen™ Embedded V2718
8 cores / 16 threads | 1.7 GHz - 4.15 GHz | TDP: 10W - 25W
AMD Radeon™ Graphics - 7 CU / 1600 MHz

AMD Ryzen™ Embedded V2546
6 cores / 12 threads | 3.0 GHz - 3.95 GHz | TDP: 35W - 54W
AMD Radeon™ Graphics - 6 CU / 1500 MHz

AMD Ryzen™ Embedded V2748
8 cores / 16 threads | 2.9 GHz - 4.25 GHz | TDP: 35W - 54W
AMD Radeon™ Graphics - 7 CU / 1600 MHz

Downloads


PRODUCT SERIES

with integrated active cooling solution

The advantage: Equipped with a compact active cooling solution
this single-board computer can be integrated immediately and is ready for use.

Differences to the basic board

  active cooling solution included
  size: approx. 113 mm x 46 mm x 109 mm
  weight: approx. 330 g + options

  size: approx. 102 mm x 102 mm



The advantage: The heatspreader, which also serves as a mounting plate, distributes the CPU heat to a larger cooling solution in the user's application. The mounting plate is compatible within the E.E.P.D. "easy to integrate" solutions, making it very easy to scale between performance classes. On the service side, this solution also brings great advantages, including fast replacement.

Differences to the basic board

  mounted heatspreader included
  size: approx. 111 mm x 31 mm x 103 mm
  weight: approx. 250 g + options

  size: approx. 102 mm x 102 mm

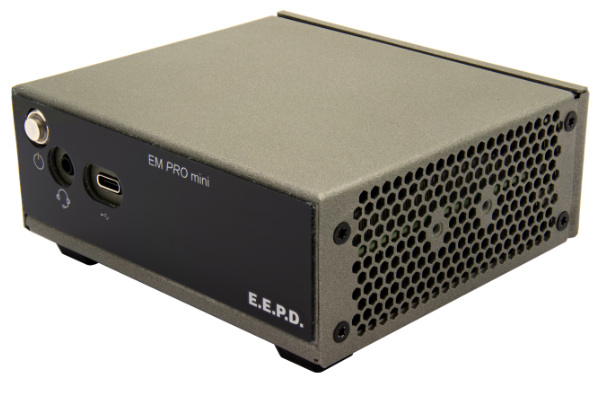

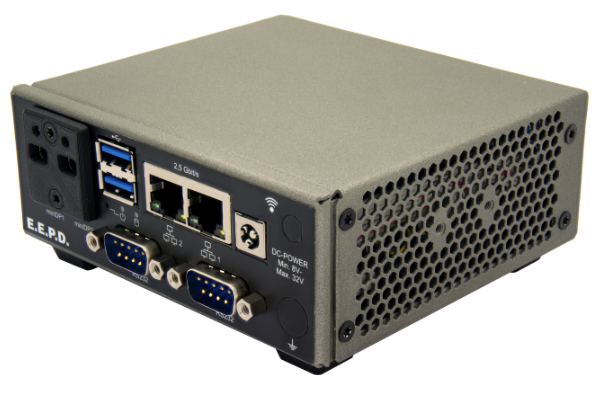

The advantage: derived from the industrial NUC BoxPC, our EM PRO mini® is the perfect communication unit for commercial applications and it ensures a secure and reliable corporate communication.


Differences to the basic board

  size: approx. 117 mm x 51 mm x 115 mm
  weight: approx. 700 g + Optionen

  size: approx. 102 mm x 102 mm

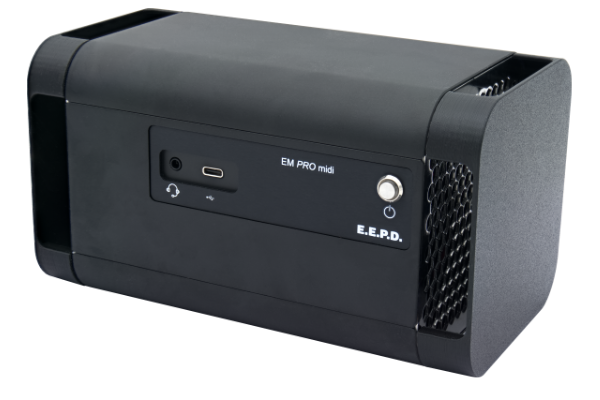

the (even more) power tower - PRO IT mini workstation

The advantage: The compact MicroTower EM PRO midi® is perfect as a portable workstation, mini server, IoT edge device / NAS server / web server, powerful business PC and workstation computer thanks to its very compact dimensions, low power consumption and high CPU and GPU performance.

Differences to the basic board

 suitable for continuous operation (24/7)
 sturdy housing made of brushed aluminium, black anodized
  size: approx. 111 mm x 117 mm x 201 mm
 weight: approx. 1.750 g + options

  size: approx. 102 mm x 102 mm

with integrated active cooling solution

The advantage: The SBC is equipped with an active cooling solution and is easy to integrate and mount in open-frame format. A lid is optionally available as an accessory.

Differences to the basic board

  active cooling solution in open-frame format included
  lid is optionally available as an accessory
  size: approx. 139 mm x 86 mm x 110 mm
  weight: approx. 890 g + options

  size: approx. 102 mm x 102 mm

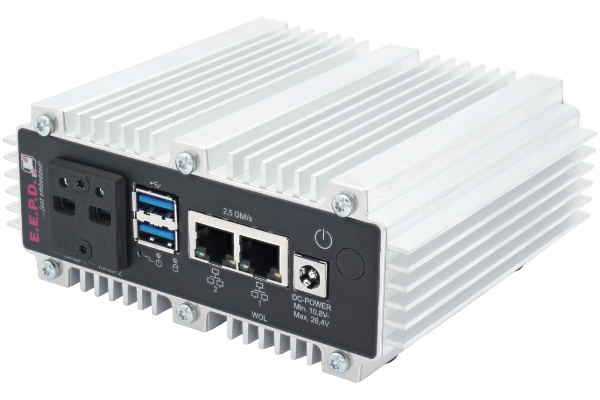

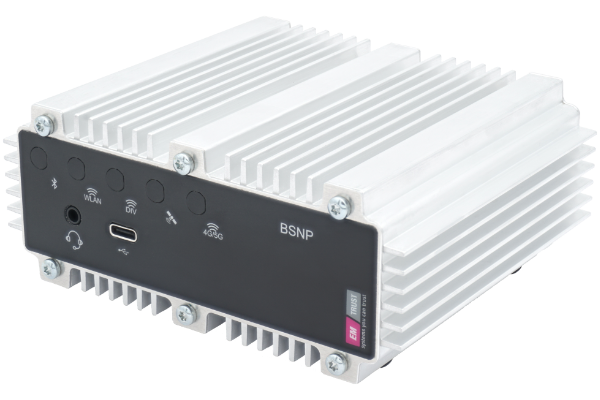

The advantage: The system is low-maintenance thanks to the silent & fanless passive cooling and is suitable for 24/7 continuous operation due to its robust design and the high-quality components built in. The compact dimensions allow installation in numerous applications. Thanks to the closed design, the systems can also be used in harsh environments.

Differences to the basic board

  including silent & fanless passive cooling
  size: approx. 130 mm x 56 mm x 119 mm
  weight: approx. 900 g + options

  size: approx. 102 mm x 102 mm



The advantage: The system is low-maintenance thanks to the silent & fanless passive cooling and is suitable for 24/7 continuous operation due to its robust design and the high-quality components built in. The compact dimensions allow installation in numerous applications. Thanks to the closed design, the systems can also be used in harsh environments.

Differences to the basic board

  including silent & fanless passive cooling
  with protection class IP67
  size: approx. 130 mm x 52 mm x 217 mm
  weight: approx. 1.480 g + options

  size: approx. 102 mm x 102 mm
