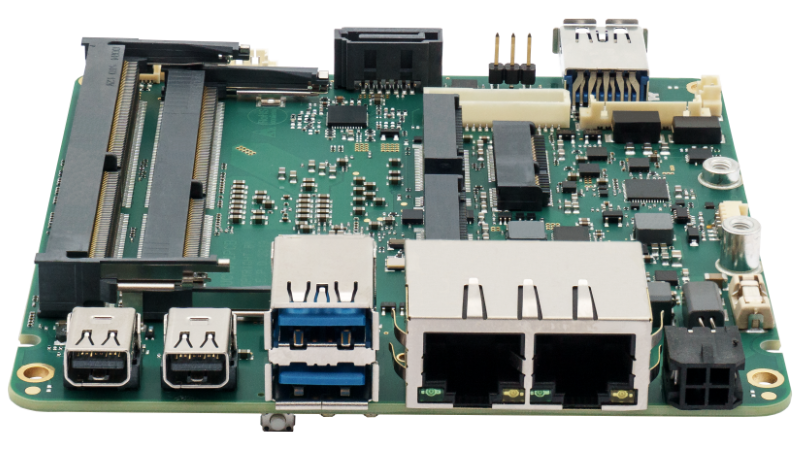

This board is a very compact, powerful industrial embedded board measuring only around 10 x 10 cm, which is perfectly equipped for various applications such as AI (artificial intelligence), ML (machine learning), CV (computer vision), robotics as well as mobile systems, automation, metrology and IoT.

NUCR is also predestined for use in vehicles. Among other things, this is accomplished by the high-quality integrated wide-range power supply (automotive grade) suitable for vehicles (8 VDC to a maximum of 32 VDC), which facilitates integration into mobile systems such as autonomous logistics vehicles and mobile robots.


Keyfeatures

  • powerful integrated GPU - AMD Radeon™ Vega 3 graphics
  • up to 32 GB dual channel DDR4 memory
  • 2x Intel® I225-LM 2.5 Gbit/s Ethernet Ports with IEEE1588
  • TSN support / Wake-on-LAN supported by one port
  • 1 MicroSD card slot
  • 3 M.2 - Type B, Type E, Type M
  • M.2 SATA or NVMe
  • 1 Serial ATA (6G) with separate power connector
  • 2x USB 3.2 Gen2 (10 Gb/s, OCP = 1500 mA each)
  • 1x Rear USB 3.2 Gen2 (10 Gb/s, OCP = 1500 mA)
  • internal up to 2x USB 2.0 (480 Mbit/s, OCP = 500 mA each)
  • 1 RS-232 Port + 1 x RS-232/485 Port (FDX)
  • 2 Mini-DP++ connector up to 4096 x 2160 @ 60 Hz
  • max. 4x GPIO (3.3 V) and max. 3x GPIO with PWM (3.3 V / 50 kHz)
  • min. 8 V to max. 32 V power supply range / automotive grade
  • max. operating temperature range: commercial at 0 °C to +60 °C; other on request
  • max. storage temperature range from –40 °C to +85 °C
  • max. rel. humidity: 95% @ 40 °C, non-condesing while stored | 89% while working
  • size: approx. 102 mm x 102 mm

CPU types available

Various CPUs with a TDP of 6 W - 25 W are used:

AMD Ryzen™ Embedded R1102G
2 cores / 2 threads | 1.2 GHz to 2.6 GHz | TDP: 6 W
AMD Radeon™ Vega 3 graphics

AMD Ryzen™ Embedded R1305G
2 cores / 4 threads | 1.5 GHz to 2.8 GHz | TDP: 8 W to 10 W
AMD Radeon™ Vega 3 graphics

AMD Ryzen™ Embedded R1505G
2 cores / 4 threads | 2.4 GHz to 3.3 GHz | TDP: 12 W to 25 W
AMD Radeon™ Vega 3 graphics

AMD Ryzen™ Embedded R1606G
2 cores / 4 threads | 2.6 GHz to 3.5 GHz | TDP: 12 W to 25 W
AMD Radeon™ Vega 3 graphics

Downloads


PRODUCT SERIES

with integrated active or passive cooling solution

The advantage: Equipped with a compact active or passive cooling solution (depending on the CPU) this single-board computer can be integrated immediately and is ready for use.



Differences to the basic board

  active or passive cooling solution included (CPU-dependent)
  size: approx. 113mm x 46mm x 109mm
  weight: approx. 330g + options

  size: approx. 102mm x 102mm


The advantage: robust and reliable Box PCs in compact design for universal installation in machines, control boxes and cabinets.


Differences to the basic board

  size: approx. 117 mm x 120 mm x 45 mm
  weight: approx. 550 g + options

  size: approx. 102 mm x 102 mm


BoxPC mit passiver Kühlung

The advantage: The system is low-maintenance thanks to the silent & fanless passive cooling and is suitable for 24/7 continuous operation due to its robust design and the high-quality components built in. The compact dimensions allow installation in numerous applications. Thanks to the closed design, the systems can also be used in harsh environments.

Differences to the basic board

  including silent & fanless passive cooling
  size: approx. 130 mm x 56 mm x 119 mm
  weight: approx. 900 g + options

  size: approx. 102 mm x 102 mm

including mounted heatspreader

The advantage: The heatspreader, which also serves as a mounting plate, distributes the CPU heat to a larger cooling solution in the user's application. The mounting plate is compatible within the E.E.P.D. "easy to integrate" solutions, making it very easy to scale between performance classes. On the service side, this solution also brings great advantages, including fast replacement.

Differences to the basic board

  mounted heatspreader included
  size: approx. 111 mm x 31 mm x 103 mm
  weight: approx. 250 g + options

  size: approx. 102 mm x 102 mm


The advantage: derived from the industrial NUC BoxPC, our EM PRO mini® is the perfect communication unit for commercial applications and it ensures a secure and reliable corporate communication.

Differences to the basic board

  size: approx. 117 mm x 51 mm x 115 mm
  weight: approx. 700 g + options

  size: approx. 102 mm x 102 mm


waterproof BoxPC with passive cooling

The advantage: The system is low-maintenance thanks to the silent & fanless passive cooling and is suitable for 24/7 continuous operation due to its robust design and the high-quality components built in. The compact dimensions allow installation in numerous applications. Thanks to the closed design, the systems can also be used in harsh environments.

Differences to the basic board

  including silent & fanless passive cooling
  with protection class IP67
  size: approx. 130 mm x 52 mm x 217 mm
  weight: approx. 1,480 g + options

  size: approx. 102 mm x 102 mm
