Mini ITX MIITX

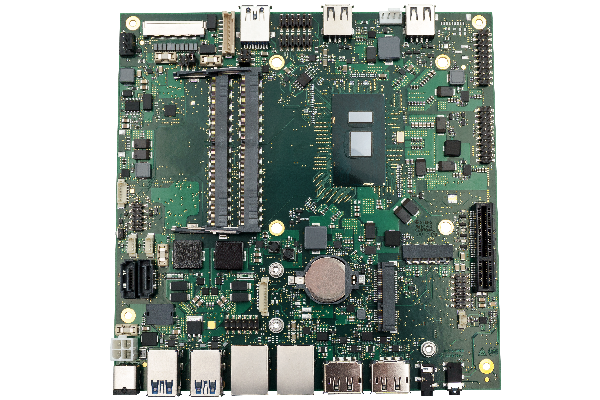

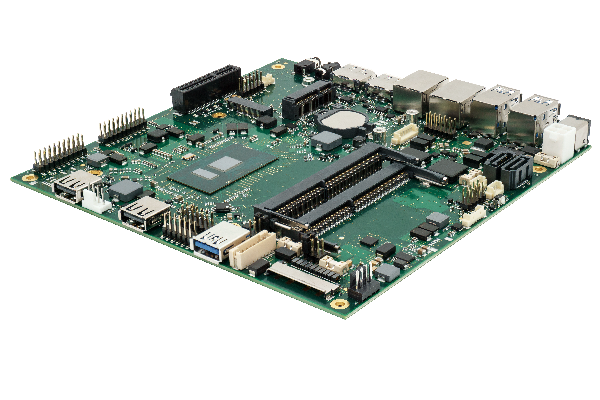

The PROFIVE® mainboard MIITX combines functionality and performance with the Mini ITX form factor and the Intel® Core™ as well as the Celeron® processors of the 7th generation.
It is characterized by a wide input voltage range of 8 VDC to 32 VDC as well as a special pre-installation for the vehicle use, including an input for continous plus (Clip 30) and ignition plus (Clip 15). In addition, a special overvoltage protection circuit for vehicle use is implemented, which in particular takes into account load dump scenarios. Together with the enormous variety of standard and industry interfaces, this creates the basis for a broad range of applications in automation, as a vehicle computer or in medical technology. The PROFIVE® MIITX is particularly suitable for fanless operation.
Keyfeatures
- designed for fanless operations, fan optional available
- UEFI-Bios
- up to 32 GB DDR4 memory (support 2133 MT/s)
- 1x PCI Express® mini card interface, prepared for SIM card reader
- 1x PCie x4 slot
- 2x SATA ports 3.0
- 1x M.2 2242 Type M for SSD
- Gigabit Ethernet: up to 2x Intel® integrated GbE/I211
- up to 5x USB 3.0 ports
- up to 9x USB 2.0 ports
- 2x display ports
- 24-bit dual channel LVDS interface
- Embedded DisplayPort-interface
- high definition audio-interface with analog audio in/out
- health monitoring and management, backlight control and watchdog
- min. 8 V to max. 32 V power supply range, integrated EMI-filter, optional ATX supply
- operating temperature: from 0 °C to +60 °C
- storage temperature: from -20 °C to +80 °C
- max. rel. humidity: 95% @ 40 °C, non-condensing while stored | 89% while working
- size: approx. 170 mm x 170 mm
- supported operating systems: Microsoft® Windows® 10 / 10 IoT Enterprise, Linux Ubuntu 18.04 LTS, Yocto Project 2.2
Available CPU types
Downloads
industrial BoxPC
The advantage: The EM Box® PC-MIITX is the perfect Plug & Play BoxPC solution for vehicle applications.In addition to the numerous standard interfaces, there is the possibility to extend the system by up to 3 interface options - see EM® I/O modules.
