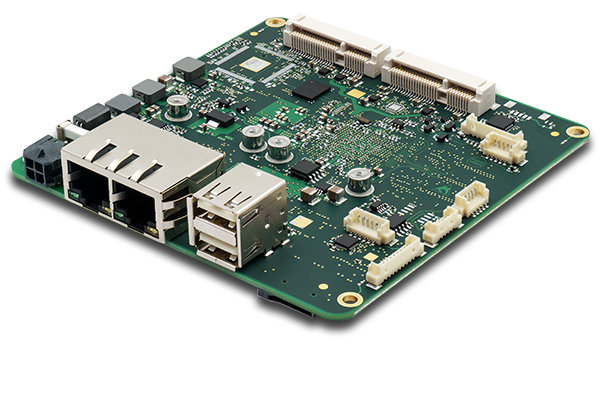

Especially the up to 2 existing PCI Express® Mini Card sockets with a separate SIM card slot each, as well as the wide input voltage range of 8 VDC - 60 VDC distinguish the compact ARM® single board computer. In addition, the maximum operating temperature range is –40 °C to +85 °C, so it can also be used under adverse conditions. NUCO is thus perfectly prepared for use as a gateway / IoT gateway.

Application examples:

  • Gateway in AI (artificial intelligence) camera systems
  • 2G / 3G / 4G / LTE / WIFI Gateway
  • Gateway for solar / isolated solutions (low power consumption)
  • Edge / Fog Gateway
  • Industrial router

Keyfeatures

  • up to 1 GB DDR3 memory onboard
  • 2x USB 2.0 ports
  • 1x MicroSD card
  • up to 2x 1 Gigabit Ethernet ports (MICREL KSZ9031RNX (1st GbE port current limited to 480 MBit/s), Intel® I210 with IEEE1588
  • up to 2x PCI Express® Mini Card interfaces, each with a separate SIM card socket
  • 2x RS-232 ports
  • 2x RS-485 ports half duplex
  • GPIO: 4 in, 4 out
  • RTC, Watchdog und temperature sensor
  • USB OTG optional
  • min. 8 V to max. 60 V DC supply voltage range
  • operating temperature: from –40 °C to +85 °C ambient temperature
  • storage temperature: from –40 °C to +105 °C
  • max. rel. humidity: 95% @ 40 °C, non-condesing while stored | 89% while working
  • size: approx. 102 mm x 102 mm
  • supported operating systems: Linux (Yocto Project w/ FSL Community BSP 2.3)

CPU types available

NXP i.MX6 processor series

Downloads


PRODUCT SERIES

industrial BoxPC

The advantage: robust and reliable Box PCs in compact design for universal installation in machines, control boxes and cabinets.

Differences to the basic board

  size: approx. 117 mm x 120 mm x 45 mm
  weight: approx. 550 g + options

  size: approx. 102 mm x 102 mm
