EM Vision® - PanelPCs for industrial use

EM Vision® systems combine pioneering technology with maximum reliability and user-friendly design. The high-resolution TFT displays with LED backlight provide brilliant images and are therefore easy to read for the user's eyes. The IP-65 front in combination with the resistive touch allows easy operation under the most adverse environmental conditions.



EM Vision® systems are extremely robust, powerful and highly scalable. These features qualify EM Vision® systems for a wide range of applications. EM Vision® systems are already being used successfully in the automotive, communications, medical and automation technology sectors, as well as in plant and mechanical engineering.

The industrial PanelPCs are available with the following boards and processors:


ARM® architecture

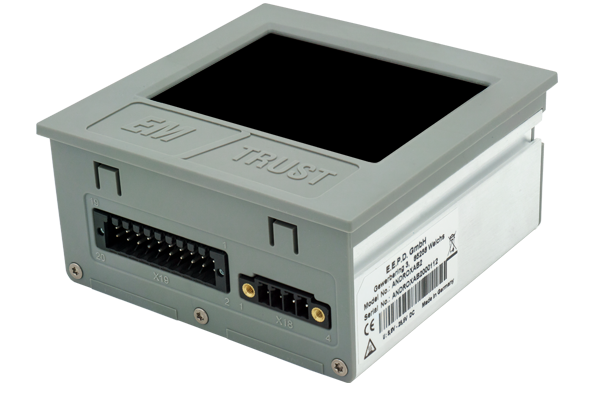

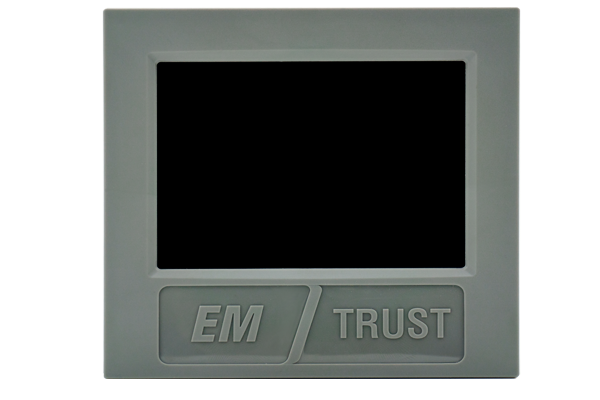

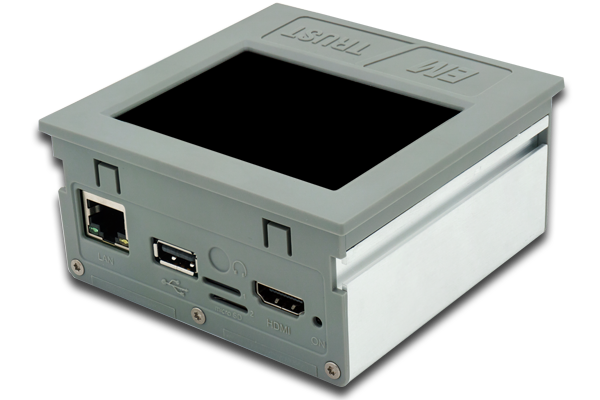

3.5" ANDROX® embedded app box - A6i

Ultra compact 3.5" HMI box with Android™ & Linux support

Downloads

In addition to the already existing markets for embedded PCs, the small, compact and powerful ANDROX® opens up numerous new applications in the area of ​​building automation, mechanical engineering or in a wide range of industrial sectors where robustness, compactness and simple networking are important.

Operate, observe and calculate in one device - ANDROX® makes computer integration possible in completely new areas.

The ANDROX® is equipped with a powerful NXP i.MX6 ARM processor. Android™ or Yocto Linux are available as an operating system on a microSD card and can be swapped out quickly. In addition to a second microSD slot for e.g. data and databases still have the option of internally installing an SSD.

The robust housing with 3.5 "TFT touch measures just 96x96x47 mm, is ¼ DIN format compatible and suitable for hat rail mounting.

With 8V to 28V DC wide-range input and the possibility of easy installation, as well as a CE certificate, nothing stopping the way of quick deployment.

ANDROX® is suitable for industrial use and long-term availability.

Creative: Create your own solution with minimal effort
Independent: Developing app – installing – using
Ready for use: Compact, multiple connectivities, compatible
Highly reliable: CE conform, DC wide range input, fanles, front side IP-65 protective faceplate
Budget-friendly: Low-maintenance, free Android™ Developer Tools
Classic panel PC for diverse automation tasks and M2M communication
Systems for alarm, monitoring and time management
Facility control for trade, industry and private usage
Systems for cash, order and customer information
Electromobility and commercial vehicle
Replay of promos via HDMI output in Full HD
And many additional functions …

  • CPU: NXP i.MX 6 processor series (single/dual/quad core)
  • 1 GB DDR3 onboard memory
  • 3.5“TFT, QVGA 320x240px
  • resistive touchscreen
  • 1 Gigabit Ethernet (max. 480 Mbit/s)
  • USB 2.0 ports type A / host port
  • USB 2.0 ports mini B / OTG
  • HDMI 1.4a port
  • RS232 and RS422/485
  • GPIO 2 IN and 2 OUT
  • CAN 2.0 Bus port
  • power switch, 2x relay, max. 2 A
  • PCI Express® Mini card reader
  • 2x MicroSD card slot
  • front IP65
  • Linux 3.0.35, Android 4.2
  • max. operating temperature 0 °C to +60 °C
  • size: 96 mm x 96 mm x 47 mm
  • weight: approx. 300 g + options

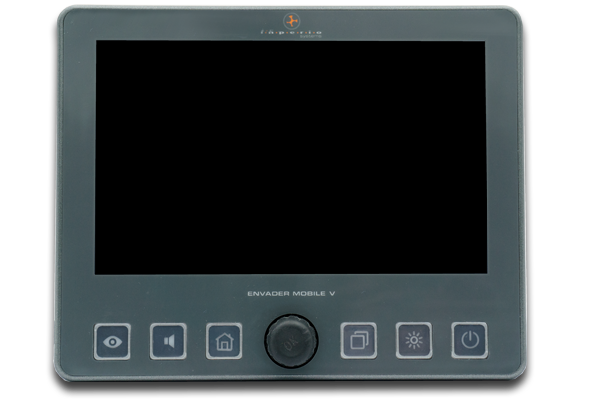

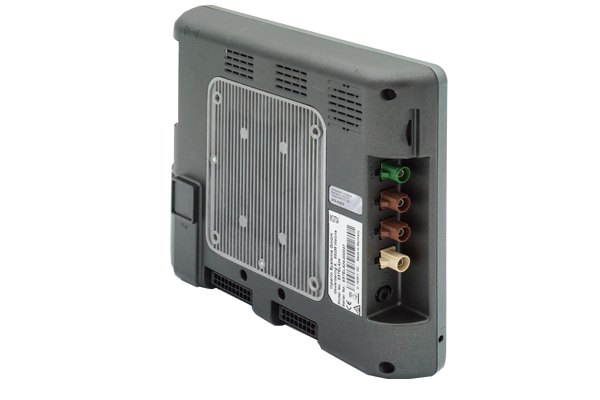

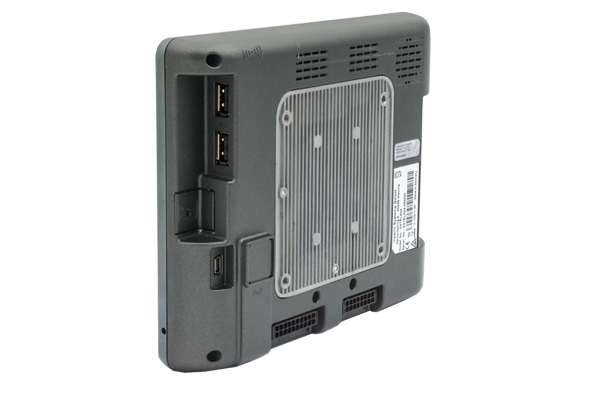

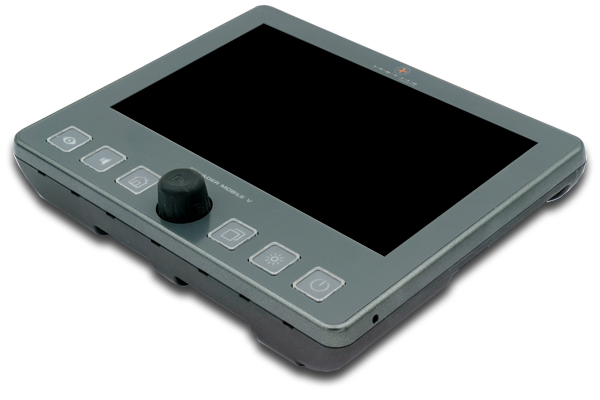

7.0" ENVADER®-A-Mobile

A flexible mobile communication system solution

Downloads

The ENVADER® A-Mobile is a flexible mobile communication system solution with voice / video recording and VOIP - the perfect and robust system for applications in harsh environments.

The system also has an excellent power-per-watt ratio. The triple-use concept with turn-push button, user-programmable buttons and an industrial-grade touchscreen allows for user-friendly handling. The ENVADER® A-MOBILE can be used in many different areas and is the perfect flexible plug & play solution. Mobile service fleets, fleet logistics, public services, police and rescue facilities, vehicles, construction and agricultural machinery, automation, industrial trucks, and much more…

The operating system supports Yocto Linux® and Android™.

ARM platform NXP i.MX6 processor
Easy operation via touchscreen, rotatable push button or 6 front buttons
Front buttons freely programmable
Quick brightness adjustment of the robust automotive display
Powerful and up-to-date processor technology - passively cooled
Connectivity via UMTS/GSM modem with concealed SIM card slot and integrated antenna or via WLAN and Bluetooth with optional integrated antenna All common interfaces for high flexibility
Fast, simple and flexible installation
Up to 3 camera inputs for rear, side and front views
Sound: 1x audio controller and mono loudspeaker, microphone and headphone interface
Large supply voltage range
Auto power-off and undervoltage monitoring for 12V and 24V board voltage
Very wide operating temperature range
Optimised system for a tough and harsh environment
CE compliant

  • CPU: NXP i.MX6 processor (single/dual/quad core)
  • 7-inch automotive display with 800 x 480 pixels
  • brightness 400 cd/m²
  • resistive industrial touchscreen
  • memory up to max. 2 GB DDR3 onboard
  • 2x USB 2.0
  • 1 Gigabit Ethernet (max. 480 MBit/s)
  • 1x mini PCIe with SIM card socket
  • 1x MicroSD card slot
  • 3x COM (2x RS232, 1x RS485)
  • 3x CAN controller
  • 1 headphone
  • 3x composite video in (PAL/NTSC)
  • GPIO 4 In, 4 Out (max. Vin; open collector)
  • 3-axis acceleration sensor (optional)
  • power input DC 8 V (min) to 32 V (max) automotive grade
  • size: approx. 185 mm x 148 mm x 34 mm (45.5 mm with front rotary switch)
  • weight: approx. 600 g + options
  • OS support: Android™ or Yocto Linux®
