Mini ITX MAITA

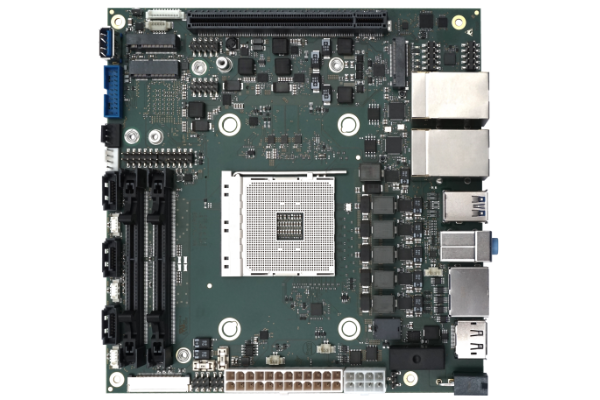

The German-made PROFIVE® MAITA industrial motherboard is designed in Mini ITX form factor. Based on the AM4 socket, "Zen 3" CPUs of the AMD Ryzen™ PRO 5000 series with x86 core architecture and innovative 7nm process technology are supported. These are characterized, among other things, by excellent energy efficiency, as well as a powerful and optimized integrated graphics unit (Radeon™).

The compact board - measuring 170 x 170 mm - is an extremely powerful industrial motherboard with up to 8 cores and 16 threads, depending on the CPU type.

A special feature is the high number of M.2 sockets (5x) as well as USB ports (6x internal / 7x external). In addition, there are three Displayport ports as well as 1x RS232 + 1x RS-232/485 (HDX/FDX). The sound is output via HDA with Line out / Line in / MIC in 3x 3.5 mm jack. The PCIe x16 (Gen3) socket enables the operation of powerful dedicated graphics cards or accelerator cards.

The high number of CPU cores and threads especially provides advantages for parallel applications. MAITA is ideal for applications that require high CPU and/or GPU performance as well as security features such as ECC & hardware TPM. For example, AI systems, medical applications, machine learning, computer vision, robotics, micro servers, high performance workstations, rugged industrial automation systems, IoT EDGE applications, and more.

Key features of the MAITA mainboard include the AMD X570 chipset, up to 64 GBytes of DDR4 RAM with Error Correction Code (ECC) support, and a flexible power supply: single power 12 V (DC) or ATX power 24+8 pin. The advanced security features include the "AMD Firmware Trusted Platform Module" and a TPM 2.0 chip (Infineon) as well as health monitoring and management with adjustable fan control, hardware monitoring and watchdog.

The PROFIVE® MAITA is delivered without CPU by default, the following CPUs can be used individually and can be purchased optionally.

Keyfeatures

  • AMD AM4 Socket
  • AMD x570 chipset
  • up to 2x 32 GB DDR4 memory - depending on CPU with ECC support
  • 2x Intel® I226 / 2.5 Gigabit Ethernet ports
  • up to 4x GPIO and up to 3x GPIO with PWM (3.3 V / 50 kHz)
  • TSN support / Wake-on-LAN supported from one port
  • 1x PCIe x16 Gen3 slot
  • 5x M.2 - Type B, Type E, 3x Type M
  • up to 3x SATA (6G) with separate power connector
  • 13 USB ports:
    4x USB 3.2 Gen2
    2x USB 3.2 Gen1
    1x USB 3.2 Gen2
    2x USB 3.2 Gen1 (internal) (10 Gb/s, OCP = 900 mA each)
    4x USB 2.0 (internal) (OCP = 900 mA each)
  • 3x display ports: 2x DP++ sockets, 1x DP++ socket or 1x eDP connection | resolution up to 4096 x 2160 @ 60 Hz
  • 1x RS-232 port + 1x RS-232/485 port (HDX/FDX)
  • fTPM - AMD firmware Trusted Platform Module | TPM 2.0 support (Infineon SLB 9670)
  • health Monitoring and Management with Watchdog
  • single Power 12 V or ATX Power 24+8 Pin
  • operating temperature range from 0 °C to +60 °C
  • storage temperature range from -40 °C to +85 °C
  • max. relative humidity: 95% @ 40 °C, non-condensing while stored | 89% while working
  • size: approx. 170 mm x 170 mm

Optionally available CPU types

AMD Ryzen™ 5 PRO 5650G
6 cores / 12 threads - 3.9 GHz to 4.4 GHz - TDP: 45 W to 65 W
AMD Radeon™ graphics

AMD Ryzen™ 5 PRO 5650GE
6 cores / 12 threads - 3.4 GHz to 4.4 GHz - TDP: 35 W
AMD Radeon™ graphics

AMD Ryzen™ 7 PRO 5750G
8 cores / 16 threads - 3.8 GHz to 4.6 GHz - TDP: 45 W to 65 W
AMD Radeon™ graphics

AMD Ryzen™ 7 PRO 5750GE
8 cores / 16 threads - 3.2 GHz to 4.6 GHz - TDP: 35 W
AMD Radeon™ graphics
