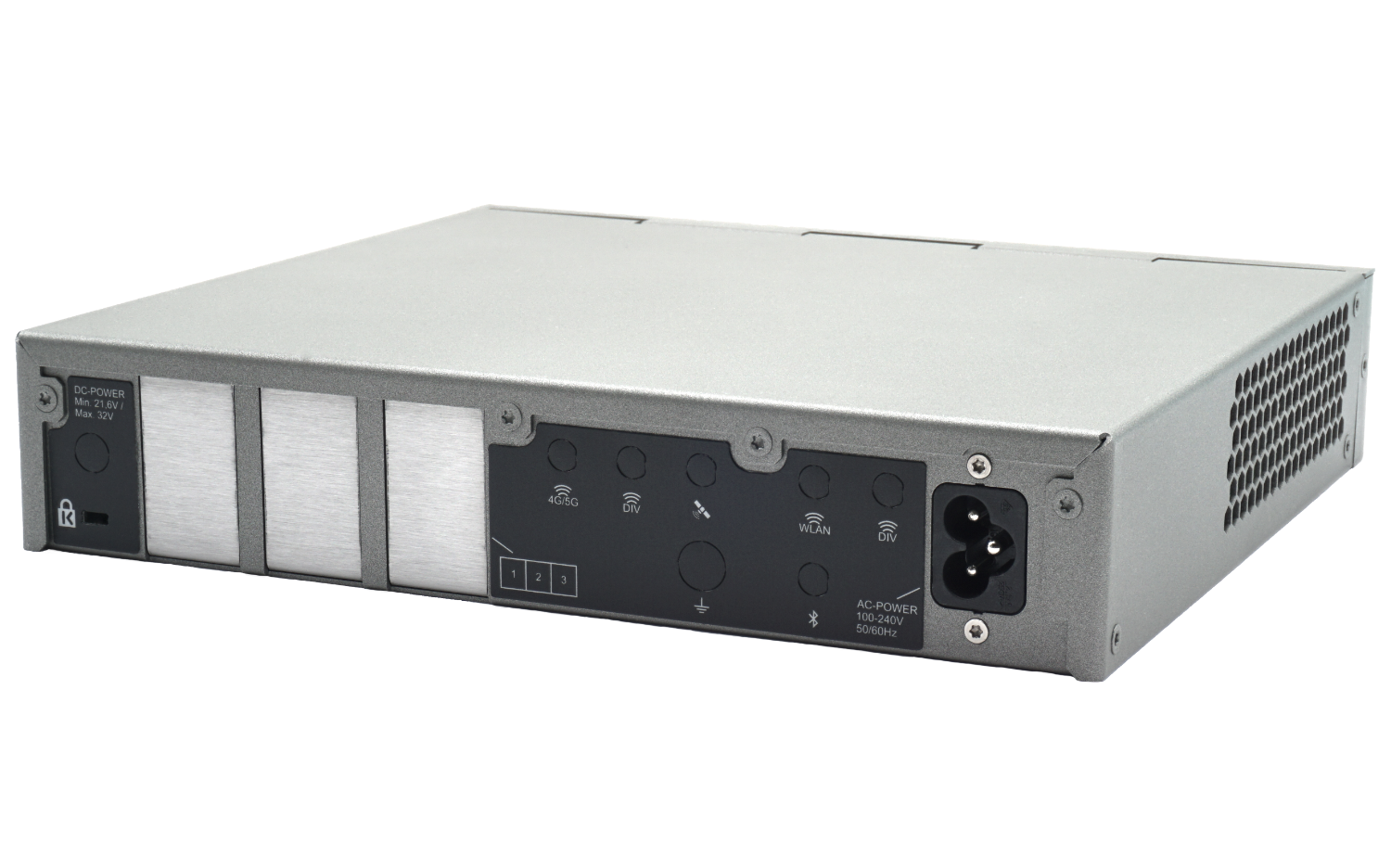

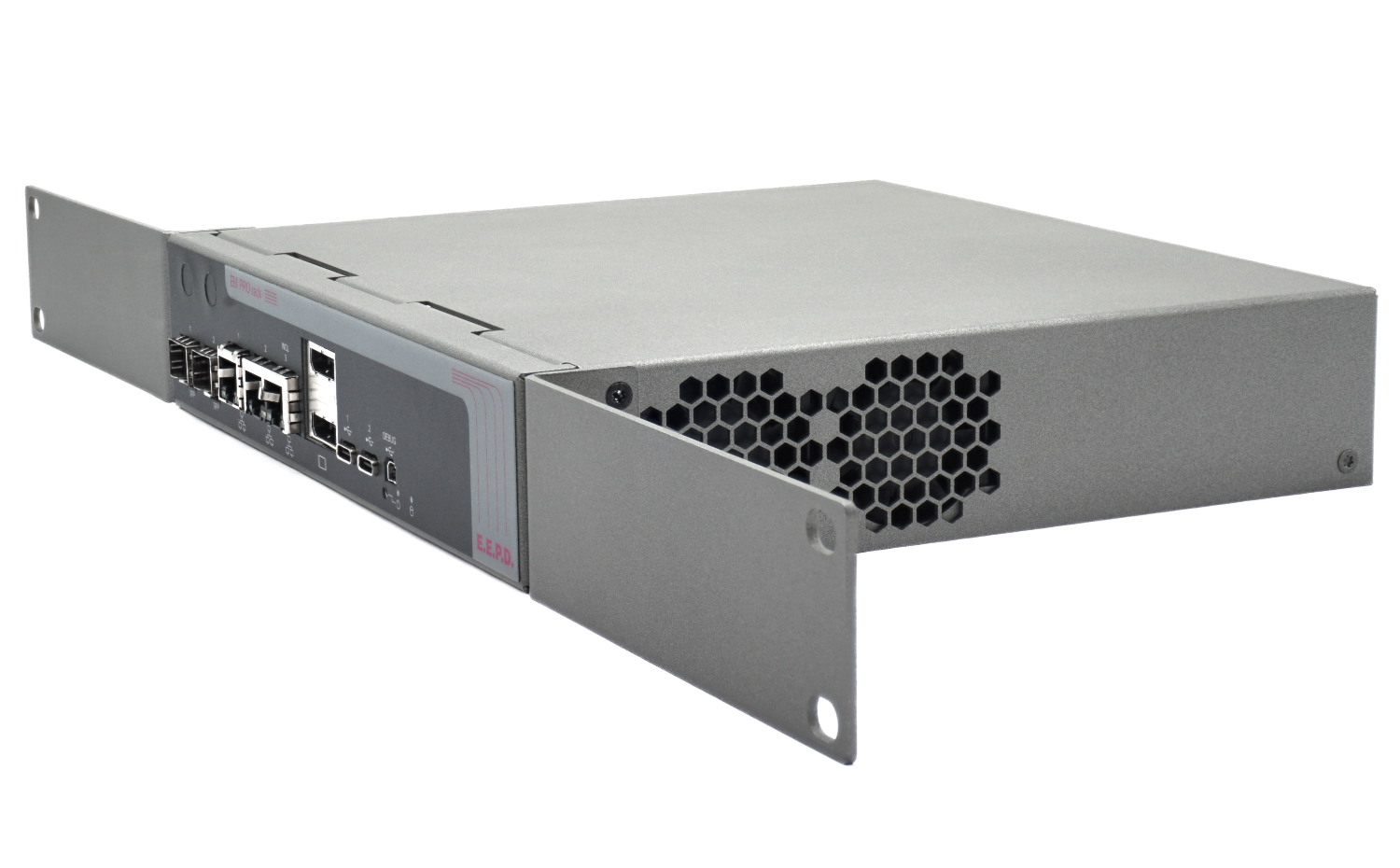

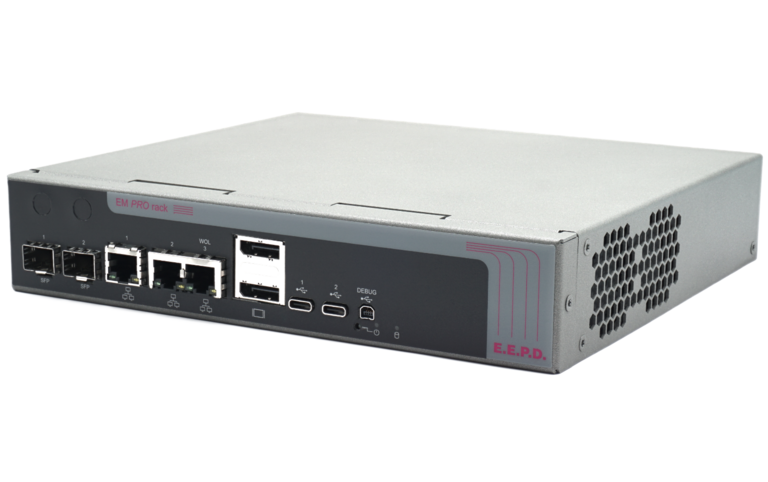

EM® PRO rack

Compact 19” 1U Rack Workstation for Edge- & Gateway Applications

base board: SBC PROFIVE® GS2

Dimension: approx. 226 x 210 x 45 mm
Weight: approx. 1680g + options
Housing: sturdy metal housing
Mounting: stand alone or hat rail

EM® PRO rack – compact 19” 1U rack workstation for edge & gateway applications

  • Modularly expandable by up to three I/O modules
  • Reliable and long-term available embedded platform (AMD Ryzen™ Embedded R2000 / V1000 / R1000 series)
  • Ideally suited for customised gateway / firewall applications
  • Ideally suited as a small server in SMEs (Small and Medium-sized Enterprises)

CPU types available

AMD Ryzen™ Embedded processors
V1605B
V1756B
R1305G
R2312
R2544

Downloads

Keyfeatures

  • up to 2x 16 GB (R1000, V1000) | 2x 32 GB (R2000)
    dual channel DDR4 memory
  • up to 2x USB-C 3.2, USB-C Alt Mode for displays and 3x internal USB
  • up to 3x Gigabit Ethernet Ports Intel® I225-LM with 2.5 Gbit/s and IEEE1588
  • up to 2x 10 Gigabit SFP+ Ports (R1000/V1000 CPUs only / SFP+ modules need to be purchased separately)
  • SSD (optional): M.2 up to 2x NVMe (2280)
  • M.2 socket:
    1x Key M (2280) PCIe Gen3 x4 NVMe
    up to 1x Key M (2280) Gen3 x2 NVMe
    up to 1x Key B (3042/3052) USB 2.0
    up to 1x Key E (2230) USB 2.0
  • Display output:
    up to 2x DisplayPort++, v1.4, up to 3840 x 2160 @ 60 Hz
    up to 2x USB-C Alt Mode, up to 3840 x 2160 @ 60 Hz (secondary monitor only)
  • fTPM - AMD firmware Trusted Platform Module | optional: TPM 2.0 support (Infineon SLB 9670) (depending on variant)
